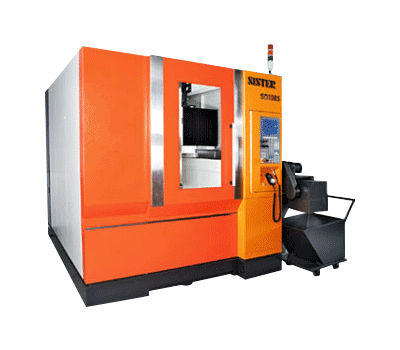

DOUBLE COLUMN(GANTRY TYPE) HIGH SPEED MACHINE CENTER

Specification

Item/model		unit	SD1085 5 axis
Control	CNC control		INTEK 675
	Spindle motor	KW	11KW(15KW,18KW0
	Motor of three axis (x.y.z.)	KW	3.5/3.5*2/3.5with Break
	Taper of spindle		BT40(HSK-A63,HSK-E50)
Spindle	Spindle drive		Built-in
	Spindle speed	RPM	15000(2000,30000)
	Table size	mm	1100*900
Table	T-slot(WidthNo.Pitch)	mm	T16
Table	Table load	KG	1500
Travels	Travel for XYZ axis	mm	1000800500
	Distance from Spindle nose to work table	mm	150-650
	Center of spindle to z-axis slide-way	mm	310
Feed rates	Rapid feed rate	mm/min	20000
	Circle cutting accuracy	mm	0.01
	Cutting feed rate	mm/min	20000
	Min. resolution	mm	0.001
Tool	Max. tool length (Diameter)	mm	200(32)
	Max. tool weight	KG	4
	ATC tool magazine (arm–less type)	T	20(24option)
Power sources	Spindle coolant-power/oil capacity	Watt /Liter	750/8
	Auto. Lubrication system –power/ oil capacity	Watt/Liter	220/2
	Heating system / hose	watt	40*2
	Capacity of Cutting fluid box	L	180
	Compressed air supply	Kg/cm2	6
	Power	kW	25
Weight	Machine net weight	KG	9300
Weight	Machine gross weight	KG	9950
Machine size	Packing size( L/W/H)	cm	321522802500
Machine size	Floor Space of machine(L/W/H) )	cm	333041103020

Item/model		unit	PAR-350
Table Top Diameter			Ø350
Overall Height in Horizontal		mm	470
Center Height in Vertical		mm	300
Overall Height in Table		mm	300
Overall Length		mm	1121
Spindle Hole Diameter		mm	Ø50H7
Width of T-Slot		mm	12H7
Width of Guide Slot		mm	18H7
Speed Reduction Speeed			1:90	1:120
Max. Rotation Speed		Motor 2000min-1	22.2	16.7
Min. Indexing Unit		degree	0.001
Tilting Angle Range		degree	+30o~-120o
Indexing Accuracy		arc/sec	15	45
Repeatiability		arc/sec	±3	±4
Broke Torque	Hydraulic	35kg/cm2	112	153
Magwetic Valve			AC110V DC24V
Brakeing			Hydraulic
Max. Loading	Horzontd	kg	200
Max. Loading	Tilt(90kg)	kg	100
Permissible Cutting Force		Kg-m	30
Net Weight		Kg	550
