Feature
- The integrally finished Meehanite casting utilizes annealing and abrasive machining to ensure precision and stability.
- The X, Y, and Z axes are all fitted with heavy-duty roller-type linear guideways, featuring low stick-slip and low friction coefficients. This allows for high feed rates and precise positioning accuracy.
- A high-rigidity, wide-range column with integrally finished casting design enhances machining capabilities in various cutting conditions.
- A chip auger is installed at the front of the base, designed to deliver chips out of the machine and prevent chip accumulation.

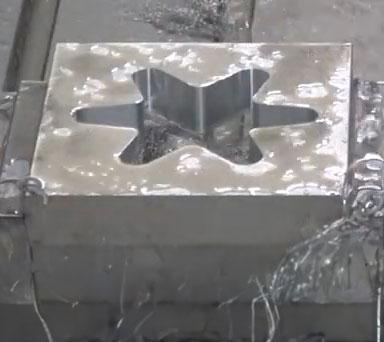

- Specially designed for high-speed cutting of hardened metals and tough machining applications.
Specification

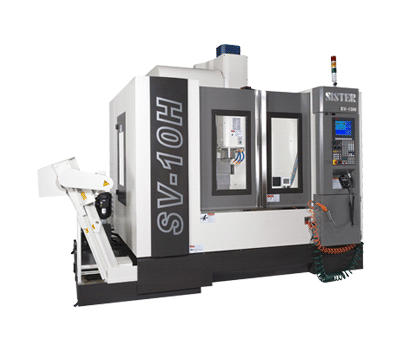

| MODEL | SV10H | |
|---|---|---|
| CONTROLLER | Mitsubishi/Fanuc | |
| MOTOR | ||
| X axis Servo Motor | KW | 3/(3.5 opt.) |
| Y axis Servo Motor | KW | 3/(3.5 opt.) |
| Z axis Servo Motor | KW | 3.5 |
| SPINDLE | ||
| Spindle Motor (Cont /30min.) | KW/HP | 7.5/11(11/15) |
| Spindle Taper | - | BT40(BBT40 opt.) |
| Spindle Type | - | Direct drive /Built in |
| Spindle Speed | - | 10000/(12000,15000,30000) |
| TABLE | ||
| Table Size | mm | 1100*500 |
| T-slot(width*No.*Pitch) | mm | 18*4*120 |
| Max. work piece weight | kg | 500 |
| TRAVEL | ||
| X/Y/Z-Axis Travel | mm | 1000/500/550 |
| Spindle Nose to Work Table Distance, Min.-Max. | mm | 120-670 |
| Spindle Center to Column Surface Distance | mm | 595 |
| Linear Guideway Type X/Y/Z | mm | 35/45/45 (Roller Type) |
| Cooling / Lubrication | - | Oil/Grease |
| FEED RATE | ||
| Rapid Traverse X / Y / Z | m/min | 30/30/24 |
| Cutting Feed Rate | mm/min | 1-10000 |
| Min. Resolution | mm | 0.001 |
| A.T.C. | ||
| Max. Tool Length | mm | 300 |
| Max. Tool Diameter | mm | ø77/(127) |
| Max. Tool Weight | kg | 7 |
| Tool selection | - | Random |
| Tool Magazine- Arm type | capacity | 24/30(opt.) |
| OTHERS | ||
| Coolant Tank Capacity | L | 250 |
| pneumatic Pressure | kg/cm2 | 6 |
| Coolant Motor Power | HP | 3/4 |
| Coolant Thru Spindle (CTS) | - | 290 Psi(20Bar) |
| MACHINE SIZE | ||
| Machine Net Weight | kg | 6100 |
| Floor Space of Machine(L*W) | mm | 3480*2350 |
| Power | KVA | 30 |
*Specifications are subject to change without prior notice
Close
Machine Features
Accessories
Standard Accessories
- Heat exchanger.
- Removable manual pulse generator(MPG).
- Enclosed splash guard & Top guard.
- FTP& RS-232 interface & USB(Intek).
- Automatic power off.
- Screw type chip conveyor.
- Automatic lubrication equipment.
- Work light & Alarm light.
- 9.3 Axis telescopic cover.
- Wash gun / Air gun.
- Swing type operator panel.
- Spindle oil cooler.
- Chip augers on base.
- Rigid tapping.
- Bed coolant wash.
- Tool kit.
Optional Accessories
- Flat type chip conveyor and chip bin.

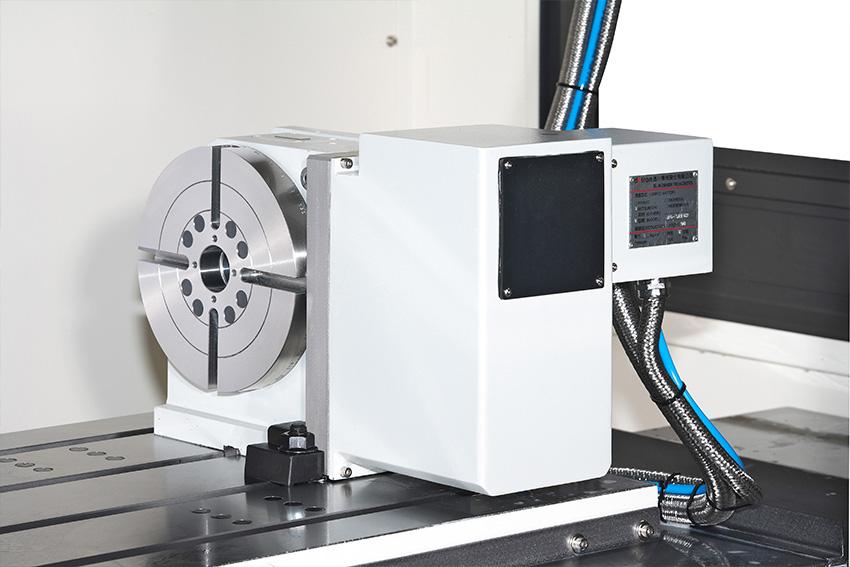

- 2.4th, 5th axis control and rotary table.

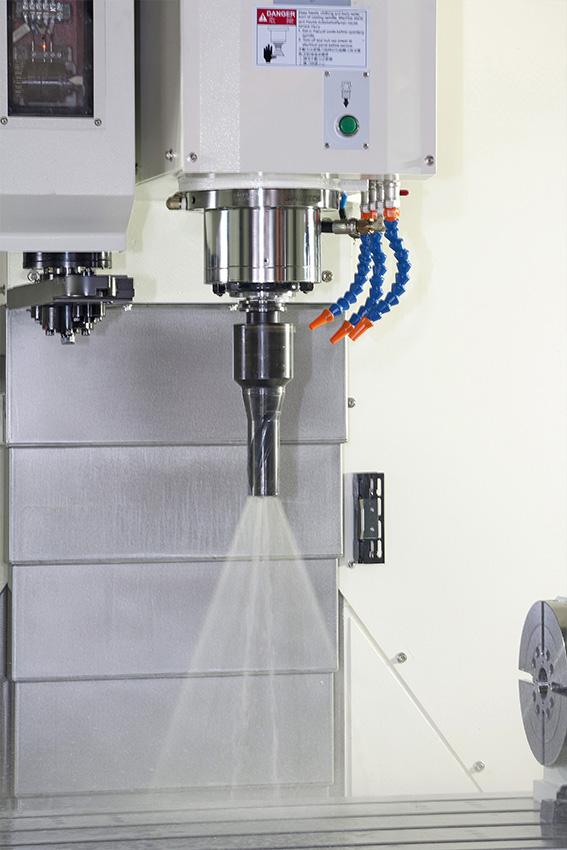

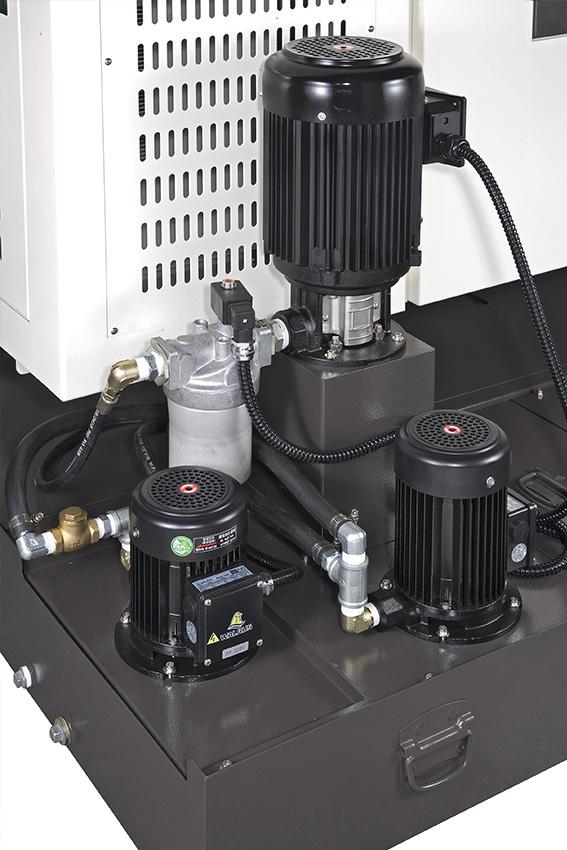

- Coolant through spindle with filter.
- Automatic tool length measuring device.
- Linear scale.
- 30, 32, 40 tools cam type ATC.
