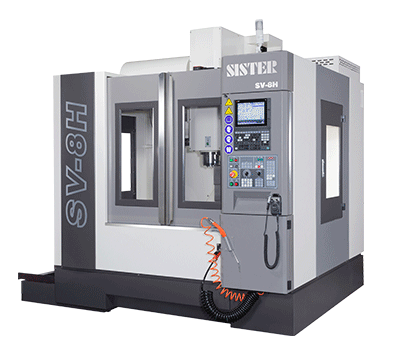

VERTICAL MACHINE CENTER

SV8H
https://www.sister-cnc.com/web/image/product.template/14/image_1920?unique=509b39f

    This combination does not exist.

    Feature

    • The integrally finished Meehanite casting utilizes annealing and abrasive machining to ensure precision and stability.

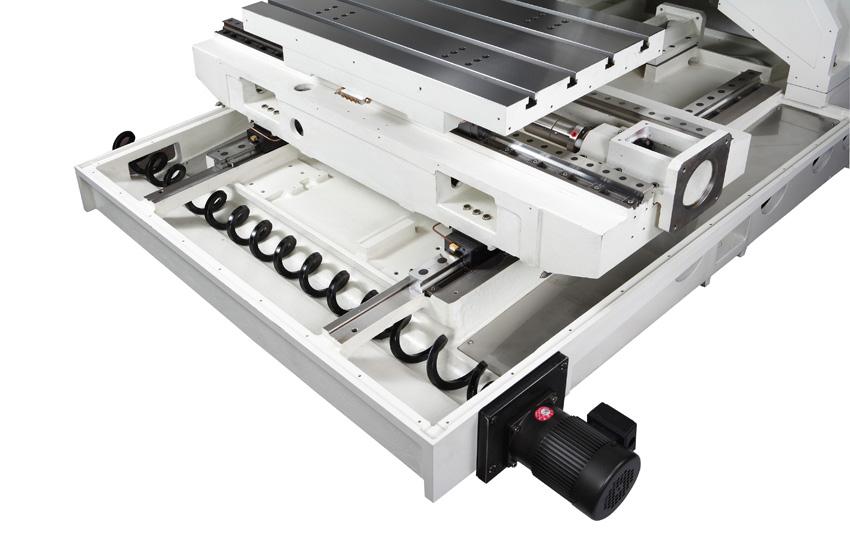

    • The X, Y, and Z axes are all fitted with heavy-duty roller-type linear guideways, featuring low stick-slip and low friction coefficients. This allows for high feed rates and precise positioning accuracy.
    • A high-rigidity, wide-range column with integrally finished casting design enhances machining capabilities in various cutting conditions.

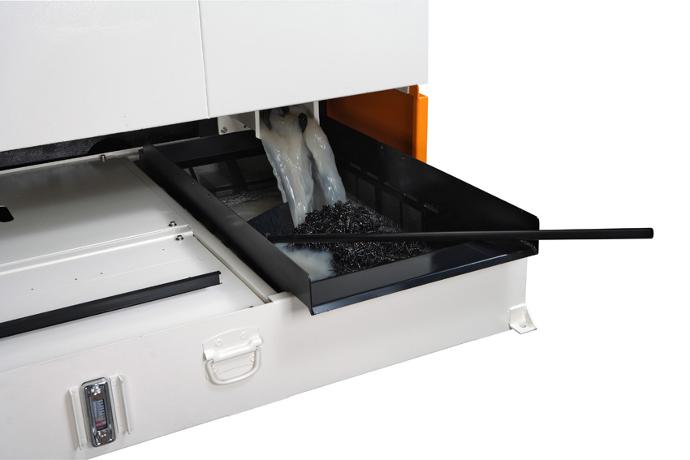

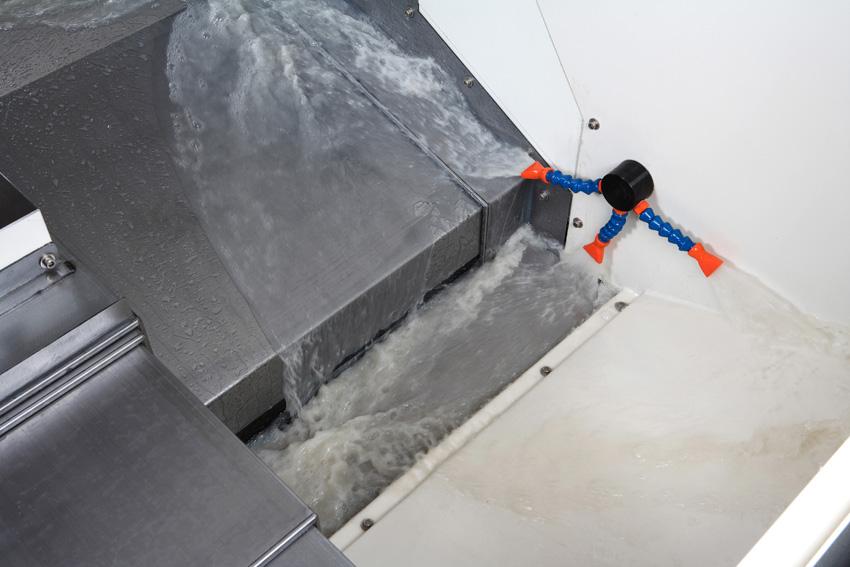

    • A chip auger is installed at the front of the base, designed to deliver chips out of the machine and prevent chip accumulation.
    • Specially designed for high-speed cutting of hardened metals and tough machining applications.

    Specification

    MODEL SV8H
    CONTROLLER Mitsubishi/Fanuc
    MOTOR
    X axis Servo Motor KW 3/(3.5 opt.)
    Y axis Servo Motor KW 3/(3.5 opt.)
    Z axis Servo Motor KW 3.5
    SPINDLE
    Spindle Motor (Cont /30min.) KW/HP 7.5/11(11/15)
    Spindle Taper - BT40(BBT40 opt.)

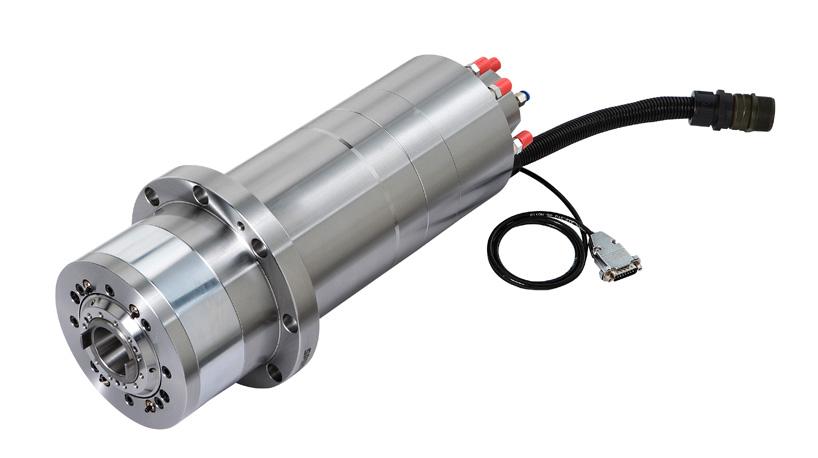

    Spindle Type - Direct drive/Built in
    Spindle Speed - 10000/(12000,15000,30000 opt.)
    TABLE
    Table Size mm 950*500
    T-slot(width*No.*Pitch) mm 18*4*120
    Max. work piece weight kg 500
    TRAVEL
    X/Y/Z-Axis Travel mm 850/500/550
    Spindle Nose to Work Table Distance, Min.-Max. mm 120-670
    Spindle Center to Column Surface Distance mm 595
    Linear Guideway Type X/Y/Z mm 30/30/35(Roller Type)
    Cooling / Lubrication - Oil/Grease
    FEED RATE
    Rapid Traverse X / Y / Z m/min 30/30/24
    Cutting Feed Rate mm/min 1-10000
    Min. Resolution mm 0.001
    A.T.C.
    Max. Tool Length mm 300
    Max. Tool Diameter mm ø77/(127)
    Max. Tool Weight kg 7
    Tool selection - Random
    Tool Magazine- Arm type capacity 24
    OTHERS
    Coolant Tank Capacity L 250
    pneumatic Pressure kg/cm2 6
    Coolant Motor Power HP 3/4
    Coolant Thru Spindle (CTS) - 290Psi (20Bar)
    MACHINE SIZE
    Machine Net Weight kg 5500
    Floor Space of Machine(L*W) mm 2900*2400
    Power KVA 25

    *Specifications are subject to change without prior notice.

    More
    Close

    Machine Features

    Accessories



    Standard Accessories

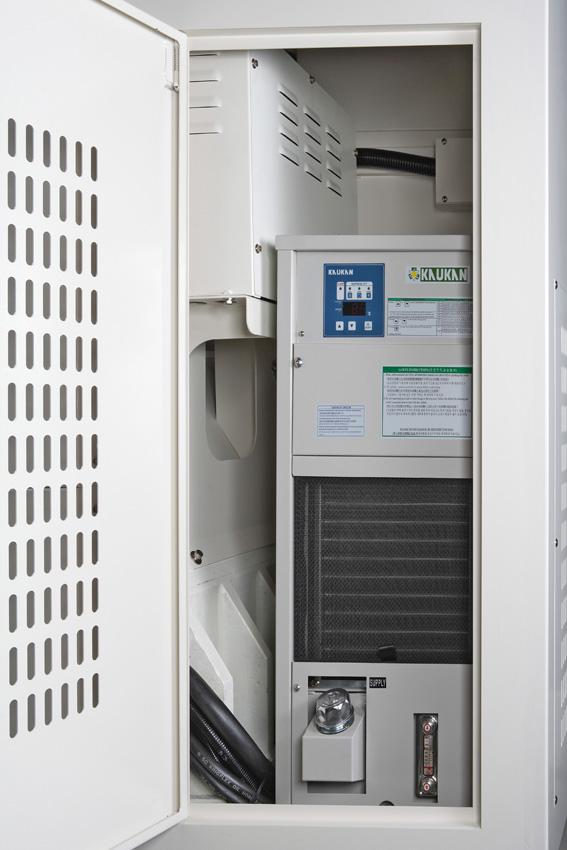

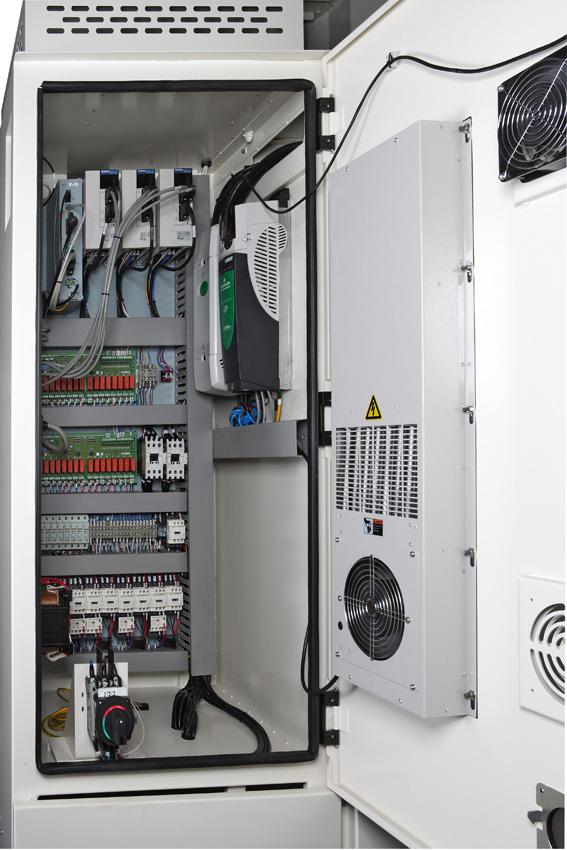

    1. Heat exchanger.
    2. Removable manual pulse generator(MPG).

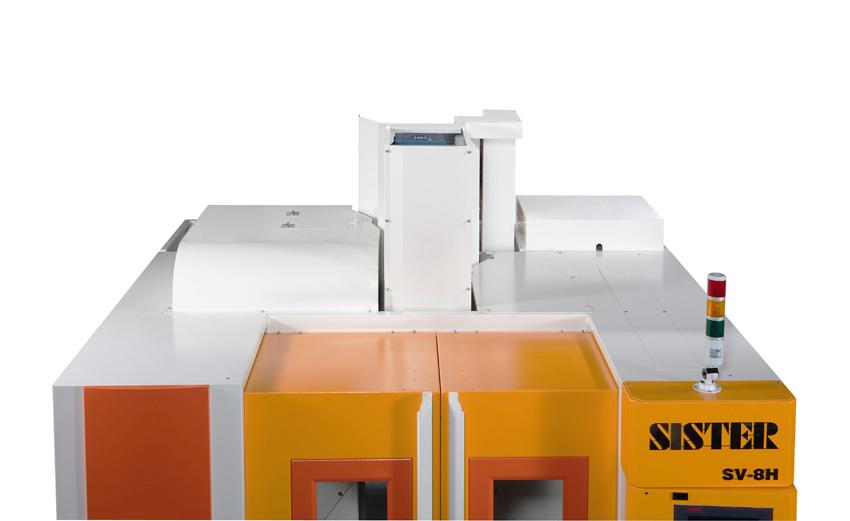

    3. Enclosed splash guard & Top guard.
    4. FTP& RS-232 interface & USB(Intek).
    5. Automatic power off.
    6. Screw type chip conveyor.

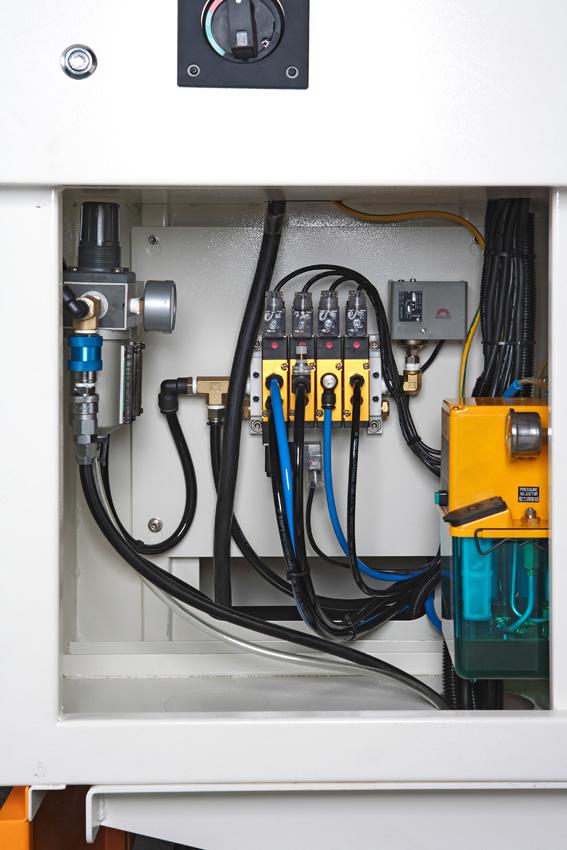

    7. Automatic lubrication equipment.
    8. Work light & Alarm light.
    9. 9.3 Axis telescopic cover.
    10. Wash gun / Air gun.
    1. Swing type operator panel.
    2. Spindle oil cooler.
    3. Chip augers on base.
    4. Rigid tapping.

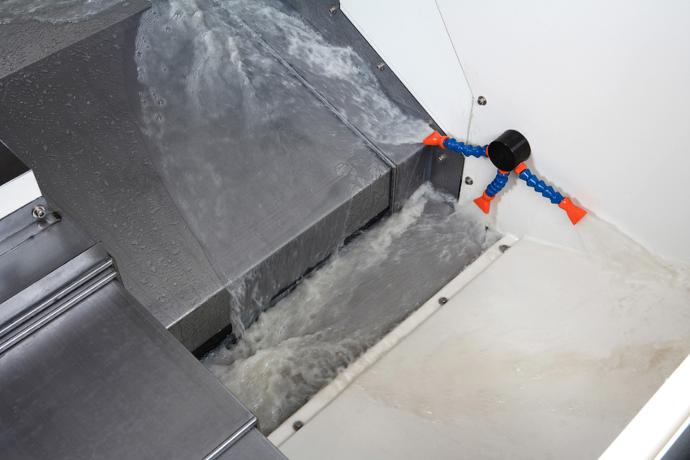

    5. Bed coolant wash.
